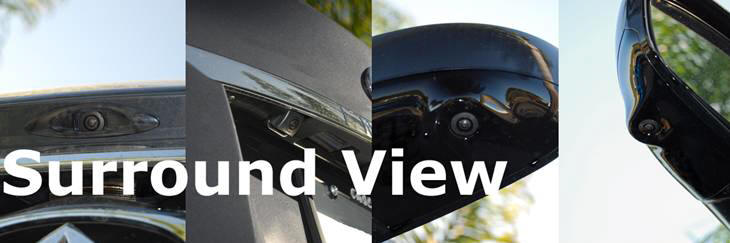

The surround view automotive camera system is a rapidly
developing application. Using the rear view camera as a
starting point, multiple-camera surround view systems provides the driver
with unmatched situational awareness by allowing a view around the
entire vehicle during critical maneuvers. Next generation surround view systems will
fuse other sensor technologies, providing an active
intelligent network to assist the driver. Future surround view
systems have the potential to replace other sensor
technologies in existing applications such as blind spot
monitoring (BSM). As a pioneer in miniature fisheye
and
SuperFisheye
(>185deg)
lens technology Sunex already has solutions suitable for surround
view cameras. Next generation surround view cameras
will require high resolution sensors and lenses as well
as special attention to the simultaneous integration of
multiple images for the end-user.
Listed below are several lenses for automotive surround
view. These off-the-shelf solutions are often a
good starting point for a custom OEM solution. If you
cannot find the product that exactly meets your requirements, please
contact us.
| PN |
Description |
Focal length(mm) |
f/# |
Imager
Format |
Field of view/
Depth of field |
Recommended Holder
|
Sample Price (1-99) |
Volume Price |
 DSL133A-650-F2.0-HP3
|
Superfisheye, HDR and environmentally stable lens for 1/4" format sensors, EFL=0.88, F/2.0, M12x0.5
|
0.88
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT168
|
$69
Order Sample |
Request Volume Quote |
| DSL253A-650-F2.1-HP3
|
Ultra compact superfisheye lens. Designed for automotive wide-angle applications. Hybrid lens. M12x0.5.
|
0.92
|
2.1
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT253
|
$69
Order Sample |
Request Volume Quote |
| DSL145A-650-F2.0-HP3
|
Superfisheye, HDR and environmentally stable lens for 1/4" format sensors, EFL=0.97, F/2.0, M12x0.5
|
0.97
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT168
|
$69
Order Sample |
Request Volume Quote |
| DSL180A-NIR-F2.0
|
Miniature tailored distortion fisheye lens, without IR cut filter, EFL=0.97mm, F/2.0, M12x0.5, metal barrel. Compatible with CMT821.
|
0.97
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$69
Order Sample |
Request Volume Quote |
| DSL180B-690-F2.0
|
Miniature tailored distortion fisheye lens, with IR cut filter, EFL=0.97mm, F/2.0, M12x0.5 slipfit, metal barrel. Compatible with CMT168.
|
0.97
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT168-1122F
|
$69
Order Sample |
Request Volume Quote |
| DSL180A-690-F2.0
|
Miniature tailored distortion fisheye lens, with IR cut filter, EFL=0.97mm, F/2.0, M12x0.5, metal barrel. Compatible with CMT821.
|
0.97
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$69
Order Sample |
Request Volume Quote |
| DSL180B-NIR-F2.0
|
Miniature tailored distortion fisheye lens, without IR cut filter, EFL=0.97mm, F/2.0, M12x0.5 slipfit, metal barrel. Compatible with CMT168.
|
0.97
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT168-1122F
|
$69
Order Sample |
Request Volume Quote |
| DSL218A-670-F2.0
|
Miniature super fisheye lens, with IR cut filter, EFL = 1.2mm, F/2.0, M12x0.5, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.2
|
2
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL218A-NIR-F2.0
|
Miniature super fisheye lens, no IR cut filter, EFL = 1.2mm, F/2.0, M12x0.5, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.2
|
2
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL236E-670-F2.0
|
Wide-angle hybrid lens for OV9715. EFL=1.23, F/2.0; Plastic barrel, aluminum cap; Decentration <1.0; Sealed; HP coating on L1-S1; Laser engraved PN, mark on retaining cap
|
1.23
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
|
$69
Order Sample |
Request Volume Quote |
| DSL181B-650-F2.2
|
Miniature tailored distortion fisheye lens, with IR cut filter, EFL=1.25mm, F/2.2, M12x0.5 slipfit, metal barrel. Compatible with CMT168.
|
1.25
|
2.2
|
1/3.2"
|
Calculate FOV
Calculate DOF |
CMT168-1122F
|
$69
Order Sample |
Request Volume Quote |
| DSL181B-NIR-F2.2
|
Miniature tailored distortion fisheye lens, without IR cut filter, EFL=1.25mm, F/2.2, M12x0.5 slipfit, metal barrel. Compatible with CMT168.
|
1.25
|
2.2
|
1/3.2"
|
Calculate FOV
Calculate DOF |
CMT168-1122F
|
$69
Order Sample |
Request Volume Quote |
| DSL181C-650-F2.2
|
Superfisheye lens, Tailored Distortion, HDR, EFL=1.25mm, 190deg HFOV, F/2.2, 4.8mm image circle. Aluminum barrel threaded M12x0.5. IR Cutoff Filter at 650nm.
|
1.25
|
2.2
|
1/3.2"
|
Calculate FOV
Calculate DOF |
|
$69
Order Sample |
Request Volume Quote |
| DSL216A-670-F2.8
|
Miniature super fisheye lens with IR cut coating, EFL = 1.3mm, F/2.8, M12x0.5, metal barrel, UV-anodize, sealed first element***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.26
|
2.8
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL216A-670-F2.0
|
Miniature super fisheye lens with IR cut coating, EFL = 1.3mm, F/2.0, M12x0.5, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.26
|
2
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL217C-670-F1.8
|
Miniature super fisheye lens, IR cut-off at 670nm, EFL = 1.3mm, F/1.8, M12x0.5, sealed IP6K9K, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.3
|
1.8
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL217C-NIR-F1.8
|
Miniature super fisheye lens, no IR cut filter, EFL = 1.3mm, F/1.8, M12x0.5, sealed IP6K9K, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.3
|
1.8
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL217D-NIR-F1.8
|
Miniature SuperFisheye lens for megapixel imagers up to 1/3” format. EFL=1.3mm, relative aperture F/1.8, no IR cut-off filter, metal barrel threaded M12x0.5
|
1.3
|
1.8
|
various
|
Calculate FOV
Calculate DOF |
|
$99
Order Sample |
Request Volume Quote |
| DSL217C-650-F1.8
|
Miniature super fisheye lens, IR cut-off at 650nm, EFL = 1.3mm, F/1.8, M12x0.5, sealed IP6K9K, metal barrel ***C-mount adapter available! CMT1205-C***. Distortion dewarping software available.
|
1.3
|
1.8
|
various
|
Calculate FOV
Calculate DOF |
CMT821, CMT002
|
$99
Order Sample |
Request Volume Quote |
| DSL183B-NIR-F2.2
|
Miniature tailored distortion fisheye lens, without IR cut filter, EFL=1.32mm, F/2.2, M12x0.5 slipfit, metal barrel. Compatible with CMT168. DISCONTINUED PN.
|
1.32
|
2.2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT168-1122F
|
$29
Order Sample |
Request Volume Quote |
|
