Day/Night is a popular term for lenses and other products which are optimized for operation in both daylight and low-light conditions using an infrared illumination source. Such products require specialized design and manufacturing techniques to provide good image quality under this broad range of spectral conditions. Using a Day/Night lens under these circumstances can improve focus, brightness and resolution over conventional lenses. Sunex also offers specialized Day/Night filter products which can further optimize your application.
Day/Night Filters
These are special IR cut-off filters (IRC40 type) designed to allow both visible
light and narrow band of NIR band to pass through. Please refer to
Day/Night filter page for details.
Day-Night IR Exchanger

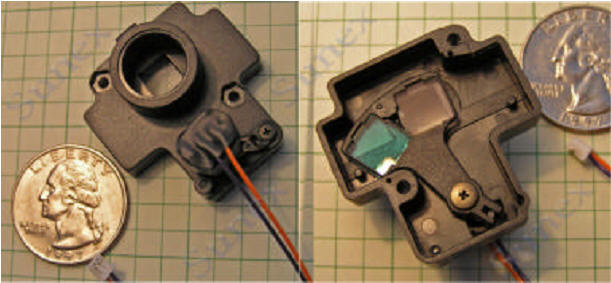

The M12-EXM-IRC21 is an IR cut-off filter exchanger with integrated lens mount
that allows true day/night (TDN) operation with the Pixim DPS chipsets. For
daytime operation an absorptive color filter provides true color rendition. At
night, an AR coated window allows maximum light transmission.
Download spec sheet.
Day/Night Lenses
The following lenses are designed to cover an extended spectral range of visible
to near-infrared wavelength (NIR). The designs are achromatized over the entire
visible and NIR wavelength so the focal shift between the visible spectrum and
NIR is minimized.
| PN |
Description |
Focal length(mm) |
f/# |
Imager Format |
Field of view/
Depth of field |
Recommended Holder
|
Sample Price (1-99)
|
Volume Price |
 DSL322A-NIR-F2.0
|
Wide-angle, multi-megapixel, hybrid lens for day/night applications, 1/4" sensor, NO IR cut-off, EFL = 2.4mm, F/2.0, M12x0.5, metal barrel
|
2.4
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT821, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL322A-650-F2.0
|
Wide-angle, multi-megapixel, hybrid lens for day/night applications, 1/4" sensor, with IRC30 IR cut-off coating, EFL = 2.4mm, F/2.0, M12x0.5, metal barrel
|
2.4
|
2
|
1/4"
|
Calculate FOV
Calculate DOF |
CMT821, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL322C-IRC41-F2.8
|
Wide-angle, multi-megapixel, hybrid lens for day/night applications, 1/4" sensor, IRC41 filter, EFL 2.4, F/2.8, M12x0.5, plastic barrel
|
2.4
|
2.8
|
1/4"
|
Calculate FOV
Calculate DOF |
|
$69
Order Sample | Request Volume Quote |
| DSL259W-660-F1.6
|
All-Glass 3MP Automotive Lens, Up to 1/2.5" sensor. M12x0.5 threaded barrel. IR Cut Filter at 660nm.
|
3.4
|
1.6
|
1/2.5"
|
Calculate FOV
Calculate DOF |
CMT821
|
$69
Order Sample | Request Volume Quote |
| DSL249D-650-F2.0-HP3
|
All-glass 2.6 MP lens designed for Automotive Front View applications. Low Ghost and high thermal stability
|
4.2
|
2
|
1/2.5"
|
Calculate FOV
Calculate DOF |
CMT821
|
$69
Order Sample | Request Volume Quote |
| DSL958R-650-F1.7
|
Wide-angle, low distortion lens for forward machine vision, IR cut-off at 650nm, EFL=4.6, F/1.7, aluminum barrel, threaded M12X0.5, front-side sealed IP6K9K
|
4.6
|
1.7
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958G-700-F4.0
|
Wide-angle, low distortion lens for forward machine vision, IR cut-off at 700nm, EFL=4.6, F/4.0, aluminum barrel, threaded M12X0.5
|
4.6
|
4
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958G-700-F1.7
|
Wide-angle, low distortion lens for forward machine vision, IR cut-off at 700nm, EFL=4.6, F/1.7, aluminum barrel, threaded M12X0.5
|
4.6
|
1.7
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958G-NIR-F2.8
|
Wide-angle, low distortion lens for forward machine vision, NO IR cut-off, EFL=4.6, F/2.8, aluminum barrel, threaded M12X0.5
|
4.6
|
2.8
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958G-700-F2.8
|
Wide-angle, low distortion lens for forward machine vision, IR cut-off at 700nm, EFL=4.6, F/2.8, aluminum barrel, threaded M12X0.5
|
4.6
|
2.8
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958E-700-F1.7
|
Wide-angle, low distortion lens for forward machine vision, IR cut-off at 700nm, EFL=4.6, F/1.7, aluminum barrel, threaded M10X0.5
|
4.6
|
1.7
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958E-NIR-F1.7
|
Wide-angle, low distortion lens for forward machine vision, no IR filter, EFL=4.6, F/1.7, aluminum barrel, threaded M10X0.5
|
4.6
|
1.7
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL958G-NIR-F1.7
|
Wide-angle, low distortion lens for forward machine vision, NO IR cut, EFL=4.6, F/1.7, aluminum barrel, threaded M12X0.5
|
4.6
|
1.7
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT107, CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL457P-700-F1.6
|
All-glass lens designed for 1/1.8" image format. Low-ghost HDR design and low f/#. 8MP M16 lens.
|
5.1
|
1.6
|
1/1.8"
|
Calculate FOV
Calculate DOF |
CMT331A
|
$99
Order Sample | Request Volume Quote |
| DSL988B-650-F1.6
|
NoGhost lens for 1-1.3MP HDR sensors, IR cut-off at 650nm, EFL=5.4, F/1.6, metal barrel threaded M10x0.5
|
5.4
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT934
|
$69
Order Sample | Request Volume Quote |
| DSL988B-NIR-F1.6
|
NoGhost lens for 1-1.3MP HDR sensors, NO IR cut filter, EFL=5.4, F/1.6, metal barrel threaded M10x0.5
|
5.4
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT934
|
$69
Order Sample | Request Volume Quote |
| DSL978B-650-F1.6
|
NoGhost lens for 1MP HDR sensors, IR cut-off at 650nm, EFL=5.9, F/1.6, metal barrel threaded M12x0.5
|
5.94
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT822, CMT107
|
$69
Order Sample | Request Volume Quote |
| DSL978B-NIR-F1.6
|
NoGhost lens for 1MP HDR sensors, NO IR cut-off, EFL=5.9, F/1.6, metal barrel threaded M12x0.5
|
5.94
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT821, CMT822, CMT107
|
$69
Order Sample | Request Volume Quote |
| DSL947B-NIR-F1.6
|
Low stray light lens for 1MP HDR sensors, NO IR filter, EFL=6.1, F/1.6, metal barrel threaded M12x0.5
|
6.1
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT107, CMT821 CMT804
|
$69
Order Sample | Request Volume Quote |
| DSL947S-650-F1.6
|
Low stray light lens for 1MP HDR sensors, IR cut-off at 650nm, EFL=6.1, F/1.6, metal barrel threaded M12x0.5, front side sealed IP6K9K
|
6.1
|
1.6
|
1/3"
|
Calculate FOV
Calculate DOF |
CMT107, CMT821 CMT804
|
$69
Order Sample | Request Volume Quote |
|
Didn’t find the lens you’re looking for? Try searching our
entire lens database using one of the following options:
|
